Any experience making a spring?

[Freezer]

I managed to get 5 shots out of my CVA Kentucky Long Rifle before I experienced a problem, the sear spring broke. I have done extensive research and found it is no longer made and hasn't been in twenty years, There are two different springs, the "U" shaped spring is available but not the "V" shape. I have three choices, find someone to make it, make it myself or spend $275 for a new lock.

I'm watching videos and researching techniques. My first problem is they want $40 for a lot more steel than I would need. Is there an alternative? A putty knife or taping blade?

I understand I'll need to get it red hot to shape it and then quench it in oil to harden it again. Then there's the tempering question, I was thinking of a cast iron skillet over a camp stove filled with sand. I saw a gunsmith do it with indirect heat until the metal turned blue but.....

[sakodude]

[url]https://www.trackofthewolf.com/parts/li ... 7#2365/url]

maybe something here.

[CPJ 2.0]

https://www.trackofthewolf.com/parts/de ... -lr-100-ss



“Brand of Manufacturer
L&R Lock Company
Choose Right or Left Hand Lock
Right Hand Gun
L&R Replacement for Factory Lock Assembly with Parts
CVA & Traditions Kentucky -”




That’s for a reproduction of the CVA lock so it may or may not be the exact same, but it’s worth a few bucks to try it.



Any hardenable steel can be can be made a spring with the proper temper.

[CPJ 2.0]


[Freezer]

No, Track of the Wolf sent me the 'U" spring. They don't have the 'V'" . I have tried every source including one in Australia, no luck. Wolff Springs doesn't have them. The shotgun springs don't have the side retainer tab. I went to a local BP shop yesterday, this was the first lock he couldn't fix.

[CPJ 2.0]

If that spring doesn’t work, and you can get away with .120 thick material, here’s a cheap option.

https://a.co/d/djKCTuf



If you have a propane torch, you can harden it. If you have a lead melting pot, you can temper it. Caveat, you NEED a thermometer to do it PROPERLY. Yes, you can eyeball the color changes to reach the tempering temperature. However you can NOT hold it at that temperature for long enough to properly temper it. Folks that temper knives in a dirty shed with a cigarette lighter after they have pounded out a knife from the leaf springs of a 79 Ford Granada because their uncle dads best friends brother in-laws cousin was a master blade maker and he ONLY used those springs for knives “ would say you can.

But I kinda side with science, physics, and metallurgists that list proper temps for tempering.

If you don’t have a thermometer, if you make the spring and send it to me, I can toss it in my heat treat oven.

[CPJ 2.0]

Have a pic of the spring?

[Freezer]

Thank you! I thought I could get another spring and mistakenly threw the old one away. There are plenty of pictures and I'm sure since the metal will be soft I can use a file and dremel to form what I need. I just don't know what steel to start with. The entire spring will be less than 2.5 inches long and less than 1/4 wide.

[CPJ 2.0]

Thank you! I thought I could get another spring and mistakenly threw the old one away. There are plenty of pictures and I'm sure since the metal will be soft I can use a file and dremel to form what I need. I just don't know what steel to start with. The entire spring will be less than 2.5 inches long and less than 1/4 wide.

Here’s the steel.

https://a.co/d/djKCTuf


With extra for you to make a knife or three from. If .120 is thick enough.

[Elk Creek]

That spring you pictured is for the sear return spring, not the main spring. Traditional flint/percussion locks have 2 springs the main a long V spring with a tab at the end and usually a pin out the side near the bend. The other is the one you posted, it just puts pressure on he sear to keep it engaged.

[CPJ 2.0]

Is this or?

[Elk Creek]

Yep! That’s what you want! If that craps out gone these guys a call.
https://logcabinshop.com/oc30/index.php ... on/contact

[Elk Creek]

It’s a dang good place to start, all of those locks need to be fit. The spring will need to be fit to your lock

[CPJ 2.0]

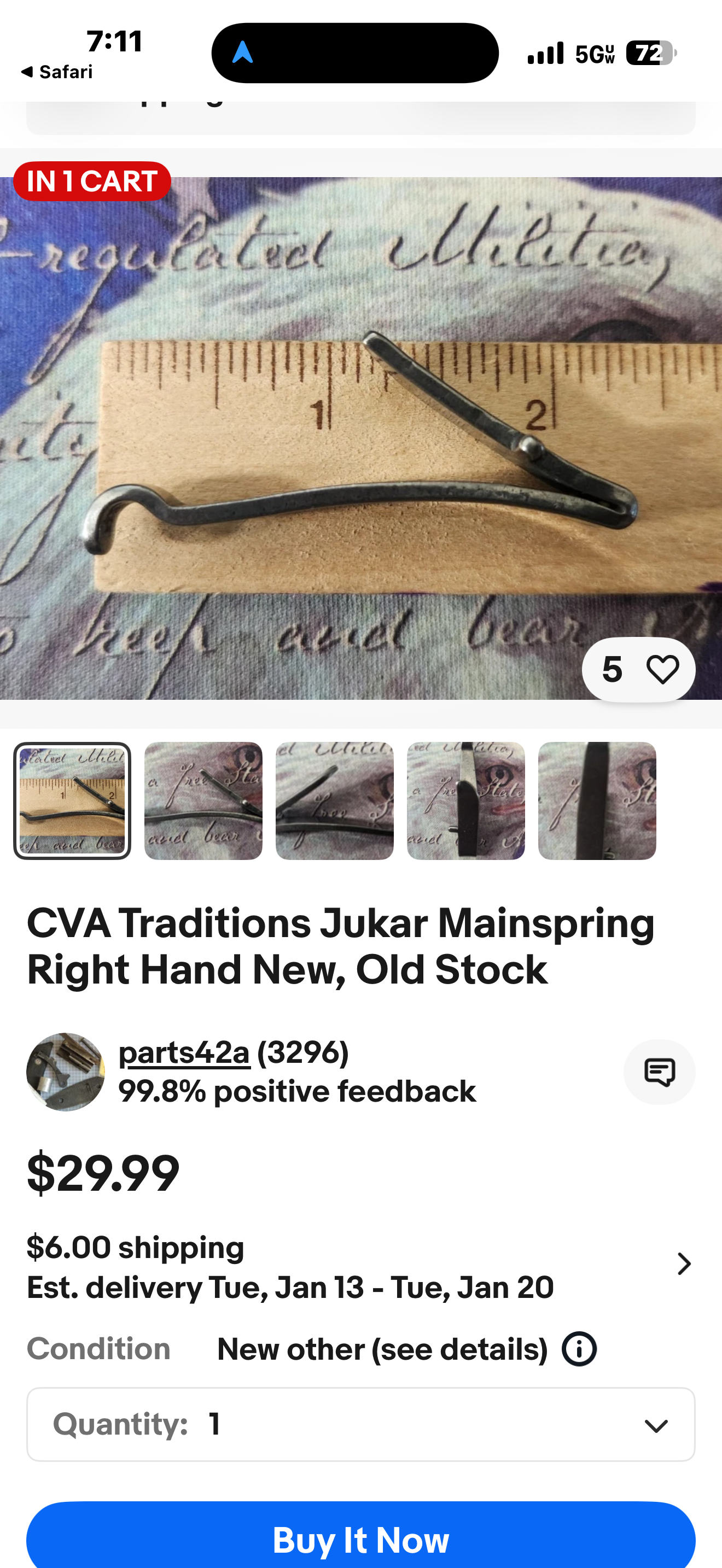

Here’s the link to the eBay spring


https://ebay.us/m/CJ1rJZ

[Elk Creek]

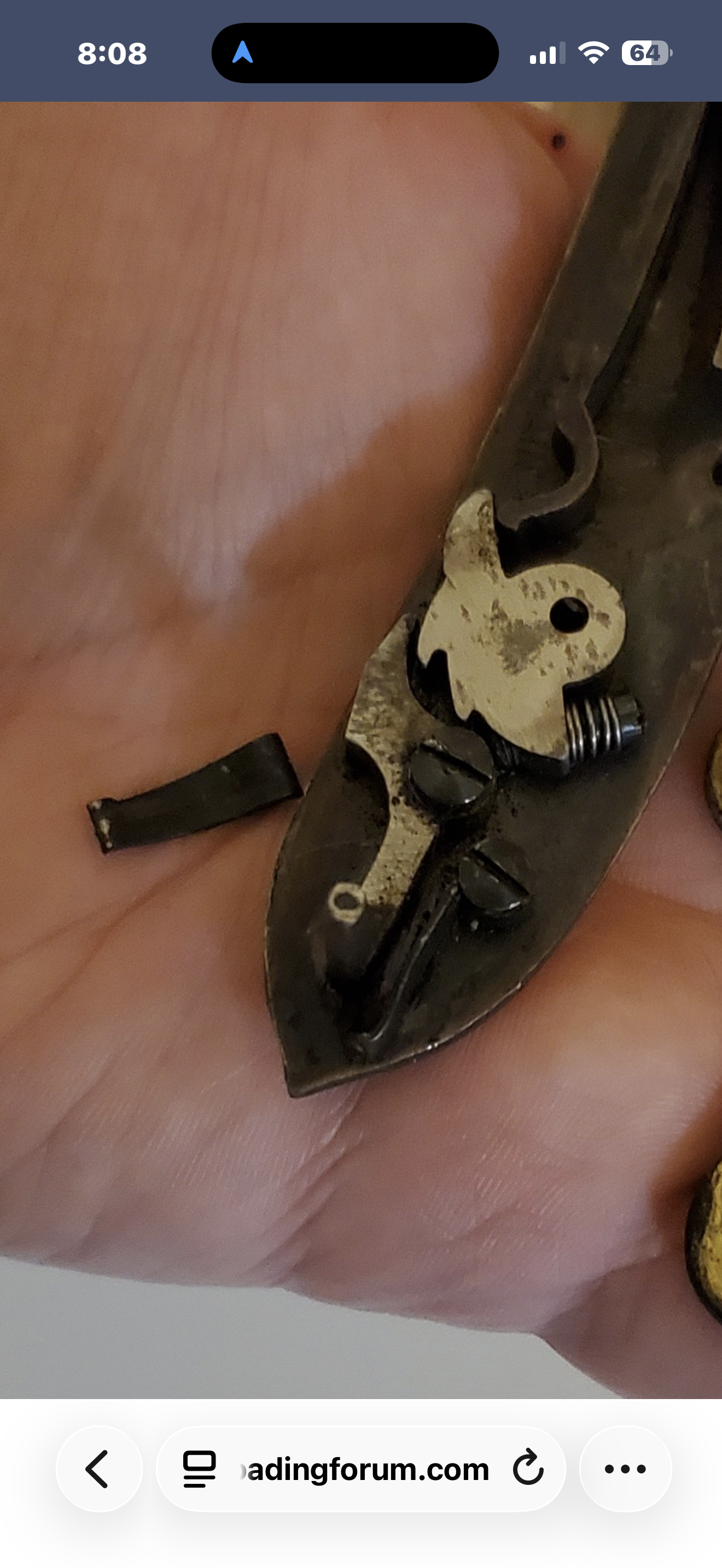

Does the lock internal look like it matches up? The hook should go around the tumbler, the other end will rest against a stop of some kind

[Freezer]

CJP, what you show is the main spring, I need the sear spring. I spoke with Sussie at Log Cabin, a sweet ol girl. She is the person that told me not to mess with the "U shaped spring, it's too short. I'll try to post pics of the "U" spring and "V" spring

[Freezer]

CJP, what you show is the main spring, I need the sear spring. I spoke with Sussie at Log Cabin, a sweet ol girl. She is the person that told me not to mess with the "U shaped spring, it's too short. I'll try to post pics of the "U" spring and "V" spring
[/quote

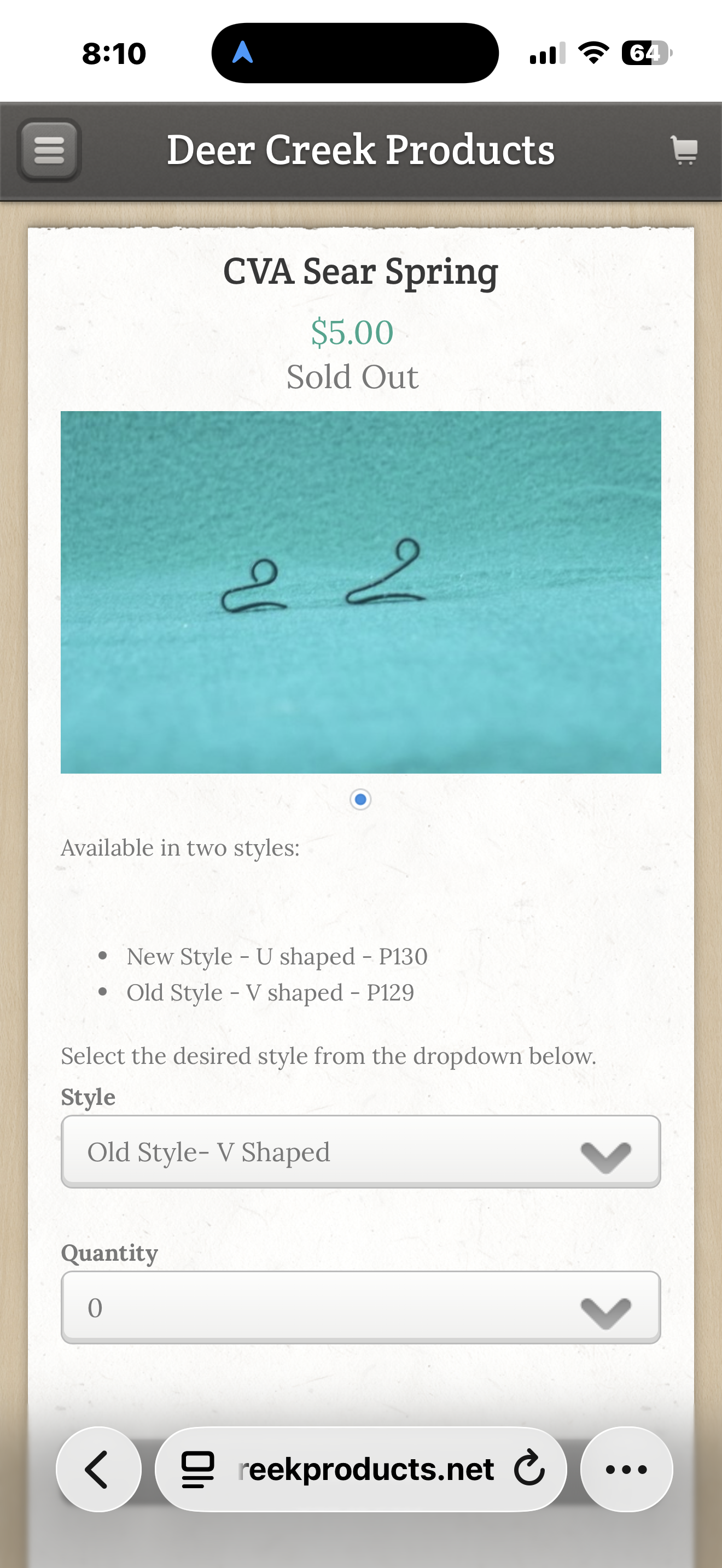

https://www.deercreekproducts.net/store ... pring.html

[CPJ 2.0]

That spring?

[CPJ 2.0]

Ok. I’m guessing here’s the ones your after, and the V is not available.

[CPJ 2.0]

Find an electrician and have him cut you off a chunk of his fish tape. Heat to anneal it and bend, re-treat it.

[Elk Creek]

Find an electrician and have him cut you off a chunk of his fish tape. Heat to anneal it and bend, re-treat it.

The one you posted from track of the wolf will probably work. It’s old technology it ain’t rocket surgery…..

[CPJ 2.0]

Ok!
NOW we are talking!

Problem solved with this YouTube video.

https://youtu.be/TpcDU7OyBHc?feature=shared

[Elk Creek]

That’s looks like a fun afternoon!!

[Freezer]

https://www.trackofthewolf.com/parts/de ... -lr-100-ss



“Brand of Manufacturer
L&R Lock Company
Choose Right or Left Hand Lock
Right Hand Gun
L&R Replacement for Factory Lock Assembly with Parts
CVA & Traditions Kentucky -”




That’s for a reproduction of the CVA lock so it may or may not be the exact same, but it’s worth a few bucks to try it.



Any hardenable steel can be can be made a spring with the proper temper.

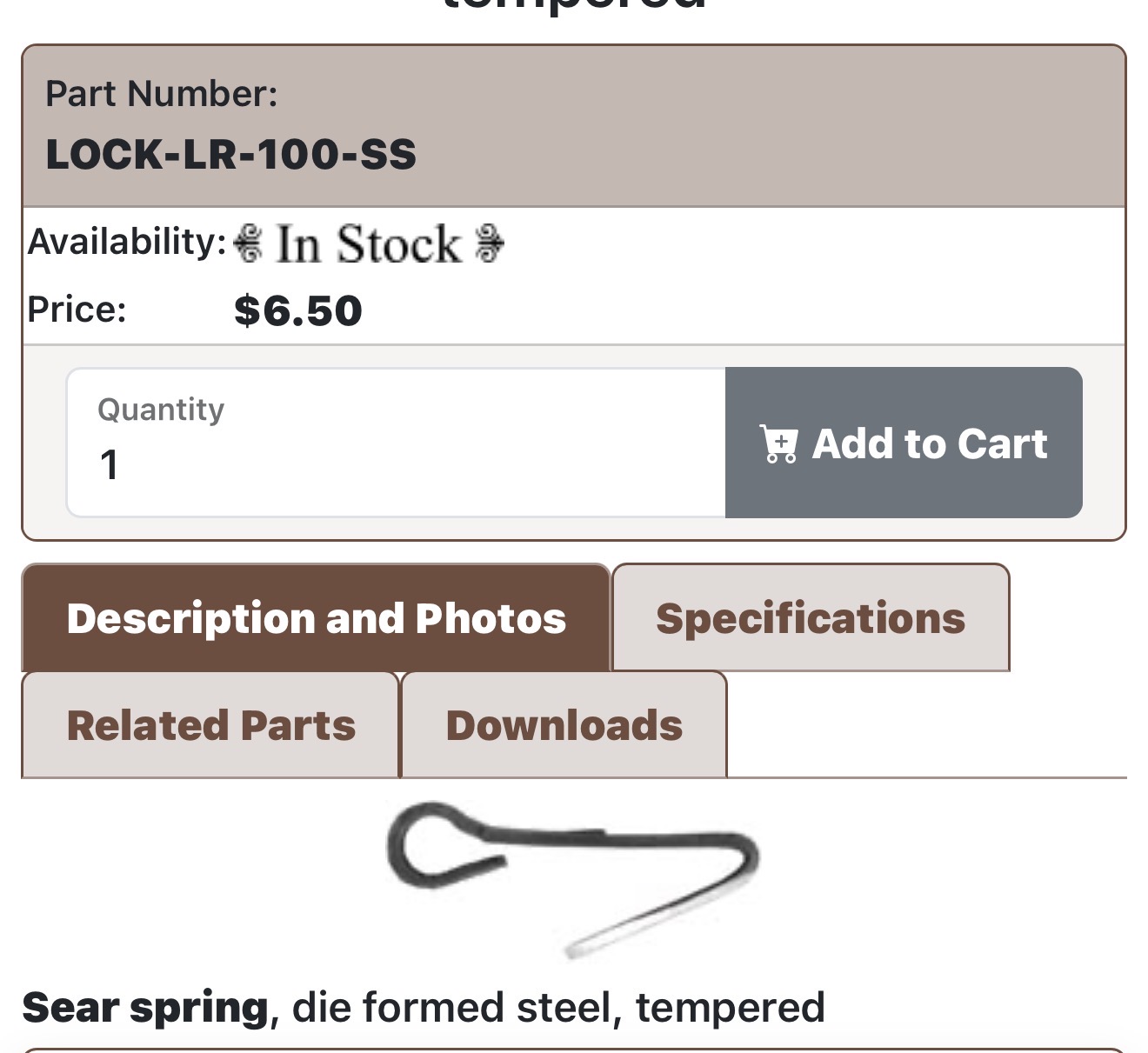

I bought this spring, it cost me $15. This is the spring that I thought would work and threw the broken spring away, This is a spring for their replacement lock, not the original CVA. New lock $270.

[Elk Creek]

It’s going to work. It may take a bit of work but you’ll be up and running in no time.
