I got started (roughed out) on the 50 caliber pinfire. I'm going for a simple design and I'm using a 1" diameter piece of O1 drill rod as the bolt/breech block for the falling block. It's a bit "over built." This thing will probably in all seriousness be able to function with heavy smokeless loads, but it's going to use 60 grains of 777 powder in the 500 S&W Magnum brass that im using. The reciever is medium carbon steel and its oversized at the moment because I wanted enough material to be able to contour everything into the stock and forearm when I'm done. I'm also fairly certain the wood was donated by @Grapeape from his M77 that I built. The barrel is a Green Mountain blank that I cut the tenon and threaded but am yet to contour, hence why the mock up has the forearm looking funny. It'll be a simple lever design to raise and lower the breech block and a hammer that swings from the side and not over the top to hit the cartridge pin. I still have a ways to go but even getting to this point was pretty quick. And drilling and reaming a 1" hole took longer than you'd expect.

Chunk gun!

PFD45 wrote: ↑Sun May 18, 2025 8:36 pmChunk gun!

It's definitely roughed out and oversized at the moment. If you look closely at the last picture you can see my pen mark of where the bottom of the reciever line is drawn from handguard to butt stock. It's real faint.

That based on those drawings?

CPJ 2.0 wrote: ↑Sun May 18, 2025 9:29 pm That based on those drawings?

No, this was just floating around in my head. I actually forgot all about that but still have them saved as a download. I'm realizing it's pretty similar though

That’s cool!!! A Ferguson rifle style breech setup could be amazing!

Justsomedude wrote: ↑Sun May 18, 2025 8:19 pm<snip> I'm also fairly certain the wood was donated by @Grapeape from his M77 that I built. <snip>

Then technically, the wood is from Teach's 6.5-06, that he replaced my 77 with, after he lost it.
Interesting looking build, I can't wait to see how it progresses.

GrapeApe wrote: ↑Sun May 18, 2025 10:37 pm

Justsomedude wrote: ↑Sun May 18, 2025 8:19 pm<snip> I'm also fairly certain the wood was donated by @Grapeape from his M77 that I built. <snip>

Then technically, the wood is from Teach's 6.5-06, that he replaced my 77 with, after he lost it.
Interesting looking build, I can't wait to see how it progresses.

I forgot about that. I just know that you said I could hang onto it so it's technically from you . But it will look nice when it's all finished. No blockiness, I promise.

looking forward to seeing it progress

I love your mad scientist work

Wambli Ska wrote: ↑Mon May 19, 2025 11:39 pm I love your mad scientist work

I appreciate that. I'm going to try to make this thing a piece of art when it's done. Nice hot blue finish a mile deep and beautiful contours. I got partially finished with the barrel contouring today and can get onto the reciever shaping after that because I need to see where the forearm will sit exactly. I can't wait to fire it. Should be a hammer!

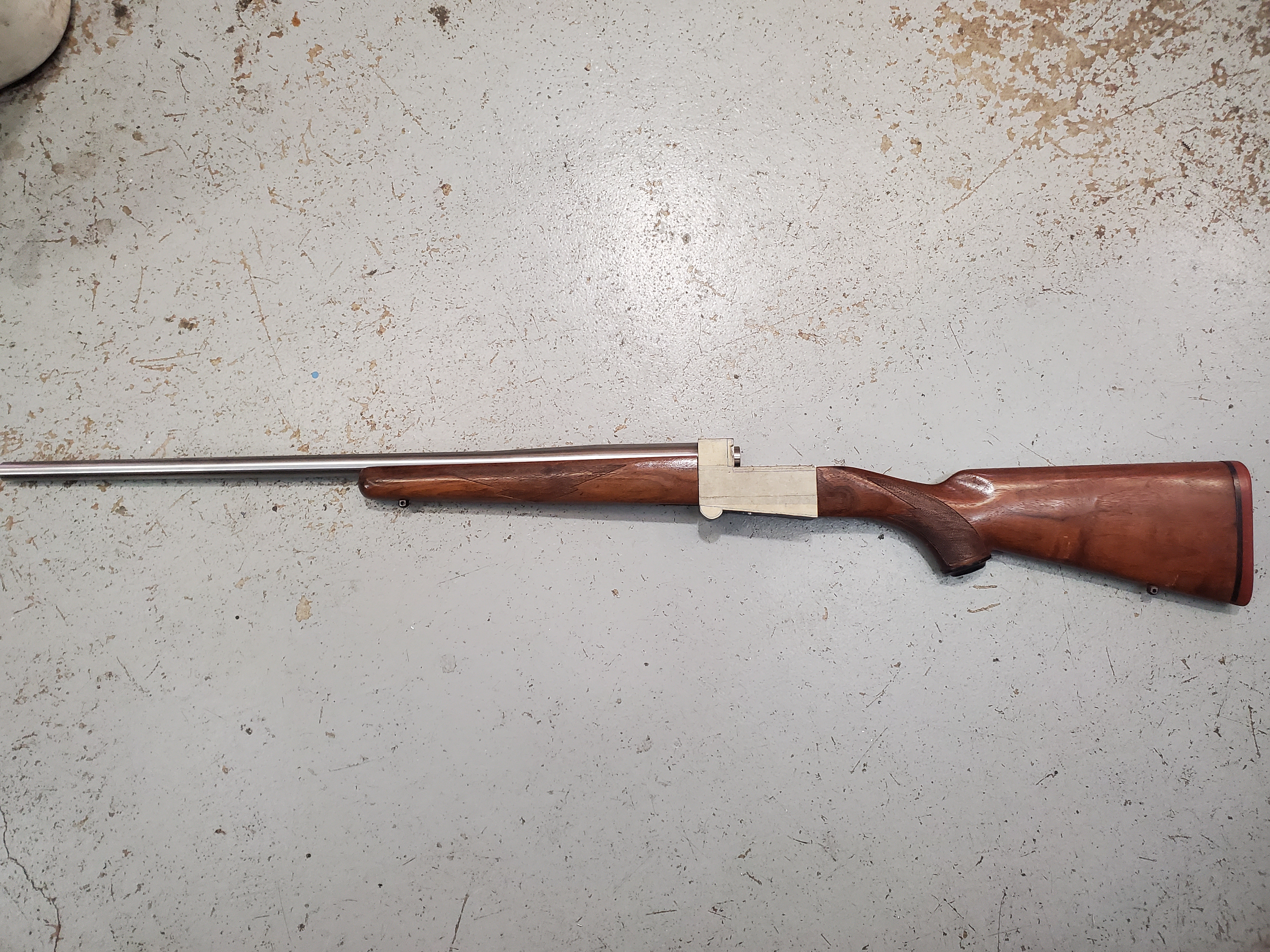

Got the barrel contoured and most of the excess removed from the reciever. It's actually starting to look like something now.

Oh that’s going to be awesome !!!!!

Creative and cool! Looking forward to seeing it go bang.

Ironically I always do these things from my head because if I put it to paper or try to write up plans or blue prints, it never works .
I'm thinking the fun part is going to be milling out the pocket for the internals of the hammer pivot shaft and trigger and then making a side plate to enclose it again. I'm pretty sure that'll be next.

Really looking forward to that next step. You have truly piqued my interest

That is the definition of inspired!

You're quite mad, you know.

Totally loving the transition from relatively raw materials to a beautiful gun!!

Gene L wrote: ↑Wed May 21, 2025 5:50 am You're quite mad, you know.

You don't know the half of it

Wambli Ska wrote: ↑Wed May 21, 2025 1:36 pm Totally loving the transition from relatively raw materials to a beautiful gun!!

Same, even being the one making it. It's awesome to see it go from a vision in my mind to a real thing.

That is freaking cool. Can’t wait to see how it turns out

Can't wait to get my grubby paws on it

bullsi1911 wrote: ↑Wed May 21, 2025 11:04 pm That is freaking cool. Can’t wait to see how it turns out

Thank you!

GrapeApe wrote: ↑Wed May 21, 2025 11:43 pm Can't wait to get my grubby paws on it

I was thinking last night, I'm kind of scared to ship it once I'm finished with it. Regardless of who I use, insurance can't really replace it and I learned the hard way that USPS absolutely won't pay up even if you prove the items value. I'll probably just hand deliver it on a visit to come see you whenever we set that up and I bring all these other "projects"
